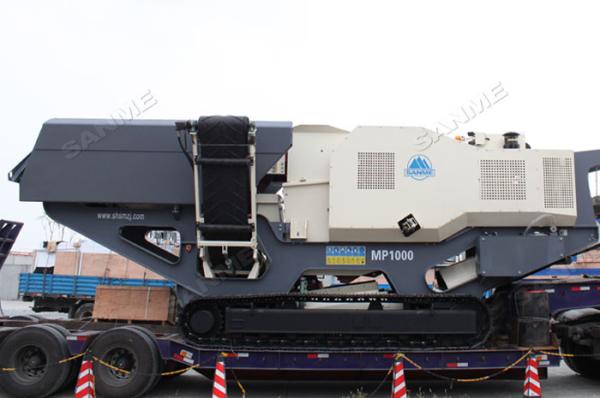

800t/H Mining Construction Mobile Jaw Crusher

Brand Name : SANME

Model Number : MP-J6, MP-J7, MP-J8, MP-J10

Certification : ISO&CE

Place of Origin : Shanghai, China

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 50 sets per Month

Delivery Time : 2 months

Packaging Details : Standard container, spare parts will be packed in wooden cases

Capacity(t/h) : 10-800t/h

Application : Mining,ore,construction,quarry,stone

Warranty : 1 YEAR

MAX FEEDING SIZE : ≤950mm

Motor Type : AC Motor

After-sales Service Provided : Video technical support, Free spare parts, Online support

Contact Now

CHARACTERISTICS OF MP-J SERIES MOBILE JAW CRUSHING PLANTS

High capacity and crushing efficiency.

Heavy duty design, high reliability.

Easy transport and fast set-up.

Convenient operation and maintenance.

High mobility.

Advanced engine, less fuel consumption, reduces operation cost.

Meet strict environmental standards.

MP-J SERIES MOBILE JAW CRUSHING PLANTS PURCHASE FROM WORLD FAMOUS BRAND

800t/H Mining Construction Mobile Jaw Crusher

Cummins or CAT Engine (Optional)

Rexroth Hydraulic Pump (Optional)

SKF Bearing (Optional)

Technical Data of MP-J Series Mobile Jaw Crushing Plants

Model MP-J6 MP-J7 MP-J8 MP-J10
Size of Feed opening(mm×mm) 600×1060 760×1000 850×1150 1070×1400
Max Feed Size(mm) 500 630 720 950
Gap width(mm) 60-175 70-200 70-220 100-250
Capacity(t/h) up to 280 up to 400 up to 500 up to 800
Driving Unit
Engine Cummins Tier3 Cat C9 Cat C12 Cat C15
Motor Power (kw) 164 242 317 390
Feed Hopper
Hopper volume (m3) 6 7 8 10
Grizzly Feeder With Pre-screening
Drive hydraulic hydraulic hydraulic hydraulic
Main Conveyor Belt
Belt width (mm) 1000 1000 1200 1400
Discharge height (mm) 2900 3300 3800 4000
Drive hydraulic hydraulic hydraulic hydraulic
Side Conveyor Belt
Discharge height (mm) 2140 2400 3000 3200
Drive hydraulic hydraulic hydraulic hydraulic
For transportation the head-piece can be folded
Crawler Unit
Drive hydraulic hydraulic hydraulic hydraulic
Permanent Magnetic Separator
Magnetic separator option option option option
Dimensions and Weights
Working dimensions
-length(mm) 12600 14800 16000 16500
-width(mm) 4060 4100 4200 4300
-height(mm) 4160 4400 4400 6000
Transport dimensions
- length(mm) 12600 14600 16000 16000
- width(mm) 2760 2850 3200 3500
- height(mm) 3460 3900 3800 3900
Weight(t) Approximately 39 48 65 115

Note:Capacity is the total production tons of open circuit when the material bulk density to be crushed is 1.6t/m3. Production capacity will be affected by physics character of material and feeding method, feeding size and material composition, and so on.
