Brand Name : SANME
Model Number : MP-J6, MP-J7, MP-J8, MP-J10
Certification : ISO&CE
Place of Origin : Shanghai, China
MOQ : Negotiate
Payment Terms : T/T, L/C
Delivery Time : 2 months
Price : Negotiable mobile crusher plant
Supply Ability : 30 sets per Month
Packaging Details : Standard container, spare parts will be packed in wooden cases
After-sales service provided : Engineers available to service machinery overseas
Type : Jaw Crusher,Mobile crusher
Capacity(t/h) : 280-800TPH
Application : Widely used in construction waste, mine, mining, sand and cement companies.

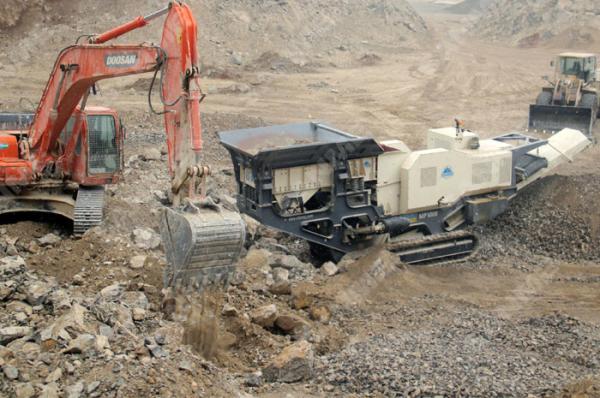

Product name : Stone Jaw Crusher Machine Mobile Crushing Plant, Hard Stone Rock Mobile Jaw Crusher
Installation : Engineer Guide
Max feeding size : 500-950mm
Noise collecting system, sound-proof system, compact and flexible equipment can further meet construction waste crushing work between cities. Suitable diesel noise pollution discharge system, effective dedusting system and release system can remote control the barriers in the portable crushing and screening plant while the pre-screening system can greatly increase crushing efficiency.
Our Service
1. Professinal Technical consultation 24-hour onlineservice
2. Free designing, choosing suitable equipment for you.
3. Hot-selling products, finished machine in stock, Shorten the leadtime and let the goods reach you earlier
4. Continuous technical support to help you solve technical problems encountered during installation and commissioning
5. 1 year warranty of whole machine, the host damage is directly replaced by a new machine for free!
Model | MP-J6 | MP- J7 | MP- J8 | MP- J10 |
Size of Feed opening(mm×mm) | 600×1060 | 760×1000 | 850×1150 | 1070×1400 |
Max Feed Size(mm) | 500 | 630 | 720 | 950 |
Gap width(mm) | 60-175 | 70-200 | 70-220 | 100-250 |
Capacity(t/h) | up to 280 | up to 400 | up to 500 | up to 800 |
Driving Unit | ||||
Engine | Cummins Tier3 | Cat C9 | Cat C12 | Cat C15 |
Motor Power (kw) | 164 | 242 | 317 | 390 |
Feed Hopper | ||||
Hopper volume (m3) | 6 | 7 | 8 | 10 |
Grizzly Feeder With Pre-screening | ||||
Drive | hydraulic | hydraulic | hydraulic | hydraulic |
Main Conveyor Belt | ||||
Belt width (mm) | 1000 | 1000 | 1200 | 1400 |
Discharge height (mm) | 2900 | 3300 | 3800 | 4000 |
Drive | hydraulic | hydraulic | hydraulic | hydraulic |
Side Conveyor Belt | ||||
Discharge height (mm) | 2140 | 2400 | 3000 | 3200 |
Drive | hydraulic | hydraulic | hydraulic | hydraulic |
For transportation the head-piece can be folded | ||||
Crawler Unit | ||||
Drive | hydraulic | hydraulic | hydraulic | hydraulic |
Permanent Magnetic Separator | ||||
Magnetic separator | option | option | option | option |
Dimensions and Weights | ||||
Working dimensions | ||||
-length(mm) | 12600 | 14800 | 16000 | 16500 |
-width(mm) | 4060 | 4100 | 4200 | 4300 |
-height(mm) | 4160 | 4400 | 4400 | 6000 |
Transport dimensions | ||||
- length(mm) | 12600 | 14600 | 16000 | 16000 |
- width(mm) | 2760 | 2850 | 3200 | 3500 |
- height(mm) | 3460 | 3900 | 3800 | 3900 |
Weight(t) Approximately | 39 | 48 | 65 | 115 |
Note:Capacity is the total production tons of open circuit when the material bulk density to be crushed is 1.6t/m3. Production capacity will be affected by physics character of material and feeding method, feeding size and material composition, and so on.
MP-J mobile crushing plants.pdf
![]() |
